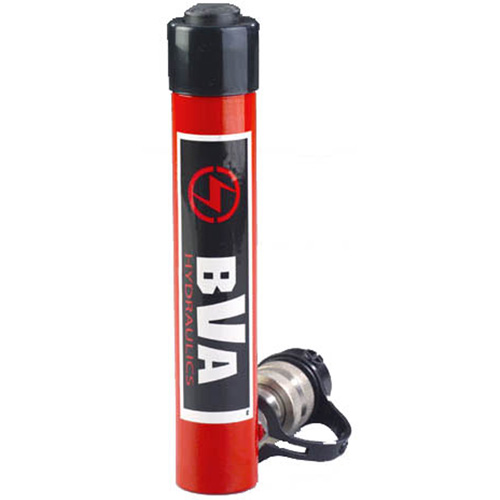

Single acting hydraulic cylinder with 5-ton capacity for lifting, pushing, and pressing applications. Designed for use in industrial and construction environments requiring controlled force.
Single acting hydraulic cylinder with 5-ton capacity for lifting, pushing, and pressing applications. Designed for use in industrial and construction environments requiring controlled force.
5 Ton 5" (12.7 cm) Stroke, 3/8" (9.5 mm) NPTF.
Features
| Maximum Working Pressure | 10,000 psi (700 bar) |
| Size | 8-5/8 x 5 x 1-1/2" (21.91 x 12.70 x 3.81 cm) |
| Hydraulic Lift | 5" (12.7 cm) |
| Closed Height | 8-5/8" (21.91 cm) |
| Extended Height | 13-3/4" (34.93 cm) |
| Weight | 4.4 lbs (2 kg) |
| Plunger Diameter | 1" (2.5 cm) |
| Maximum Working Pressure | 10,000 psi (700 bar) |
| Size | 8-5/8 x 5 x 1-1/2" (21.91 x 12.70 x 3.81 cm) |
| Hydraulic Lift | 5" (12.7 cm) |
| Closed Height | 8-5/8" (21.91 cm) |
| Extended Height | 13-3/4" (34.93 cm) |
| Weight | 4.4 lbs (2 kg) |
| Plunger Diameter | 1" (2.5 cm) |
